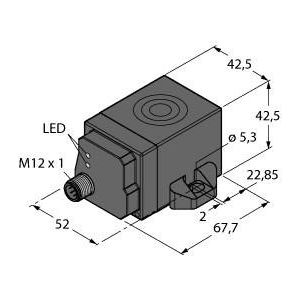

Turck - RFID-Lesegerät Schreib-Lese-Kopf HF TNSLRQ42TWDH1147/C53 Bus-Linien-Topologie

Read/Write Head, For Bus Line Topology with TBEN-*, Operating voltage 19.2 28.8 VDC, Non-flush, Rectangular, height 42.5 mm, Active face on top, Plastic, PA12-GF30, Device without end termination, Device may only be operated in line topology TBEN-S*-2RFID-* or TBEN-L*-4RFID-*, Max. 32 nodes per line or connection permitted, Use a corresponding terminating resistor (see accessories), Observe the performance of the power supply, especially when turned on, and the maximum current carrying capacity of the cables, Observe the voltage drop on the line, The maximum possible length of the spur line is 2 m, The maximum possible length of the bus is 50 m, By default, a command can only be processed by one read/write head, making HF bus mode suitable for static applications and slow dynamic applications, In continuous HF bus mode, a command is executed simultaneously on all read/write heads in a bus topology. The recorded data is stored in the ring buffer of the module, The read/write head is automatically assigned an address, For different application requirements, the address and can be parameterized, Powered and operated only via connection to BL ident interface module, M12 × 1 connector, connection only via BL ident extension cable

Technische Details
Frequenz	13,56 MHz
Funkprotokoll	ISO 15693
Max. Reichweite	215 mm
Art der Eingangsspannung	DC
Ausführung des elektrischen Anschlusses	Steckanschluss
Werkstoff des Gehäuses	Kunststoff
Breite	42,5 mm
Höhe	42,5 mm
Tiefe	67,7 mm
Schutzart (IP)	sonstige

Lieferumfang:
1 x Turck - RFID-Lesegerät Schreib-Lese-Kopf HF TNSLRQ42TWDH1147/C53
