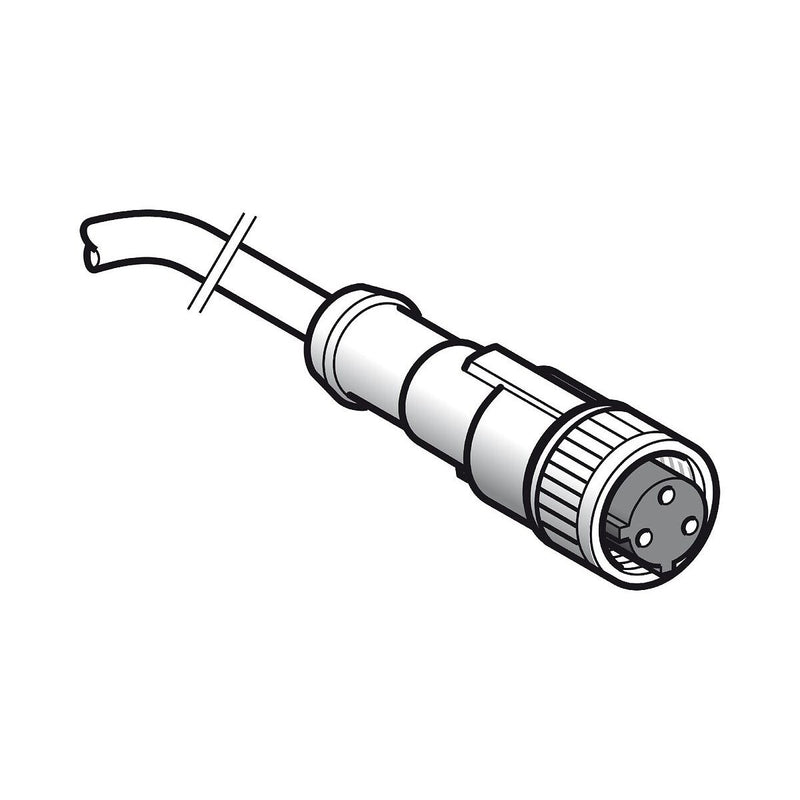

TMSS - Konfektioniertes Sensor-Aktor-Kabel XZ-Vorverdrahtete Buchsen XZCP1865L2 1/2"

This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 3 wires and has a 3 pins 1/2&quot
20 UNF straight female connector with a metal collar. It is designed in polyurethane for severe industrial environments. It is furnished with 3-pin 1/2-20 UNF straight female connector for electrical connection with screw on cable connector fixing. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 4A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1G?. It is dustproof and can be temporarily immersed in water (IP67). This cable has a length of 2m and a diameter of 5.2mm. It is made up of 3 wires, each section of which is 0.34 mm². Its color is black and its weight is 0.08kg. It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-35°C to +90°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 3 pins 1/2&quot
20 UNF male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification. The XU range offers a full line of photoelectric proximity sensors dedicated to material handling, packaging, labelling, lift, food and beverage industries.

Technische Details
Polzahl	3
Ausführung elektrischer Anschluss, feldseitig	sonstige
Art des Steckkontaktes, feldseitig	Female (Buchse)
Anordnung der Kabelzuführung, feldseitig	gerade
Ausführung elektrischer Anschluss, gehäuseseitig	sonstige
Art des Steckkontaktes, gehäuseseitig	Female (Buchse)
Anordnung der Kabelzuführung, gehäuseseitig	sonstige
Kabellänge	2 m
Werkstoff des Kabelmantels	Polyurethan (PUR)
Halogenfrei	nein
Farbe des Kabelmantels	schwarz
Mit LED-Anzeige	nein
Geschirmt	nein
Kabeltyp	mehradrig
Strahlenvernetzt	nein
Werkstoff des Kontaktgrundkörpers	sonstige
Werkstoff der Kontaktbeschichtung	sonstige
Zul. Kabelaußentemperatur nach Montage ohne Erschütterung	-35..90 °C
Zul. Kabelaußentemperatur bei Montage/Handling	-5..90 °C
Bemessungsstrom In	4 A
Bemessungsspannung	250 V
Durchgangswiderstand	5 mOhm
Schutzart (IP)	sonstige

Lieferumfang:
1 x Sensor-Aktor-Kabel XZCP1865L2
