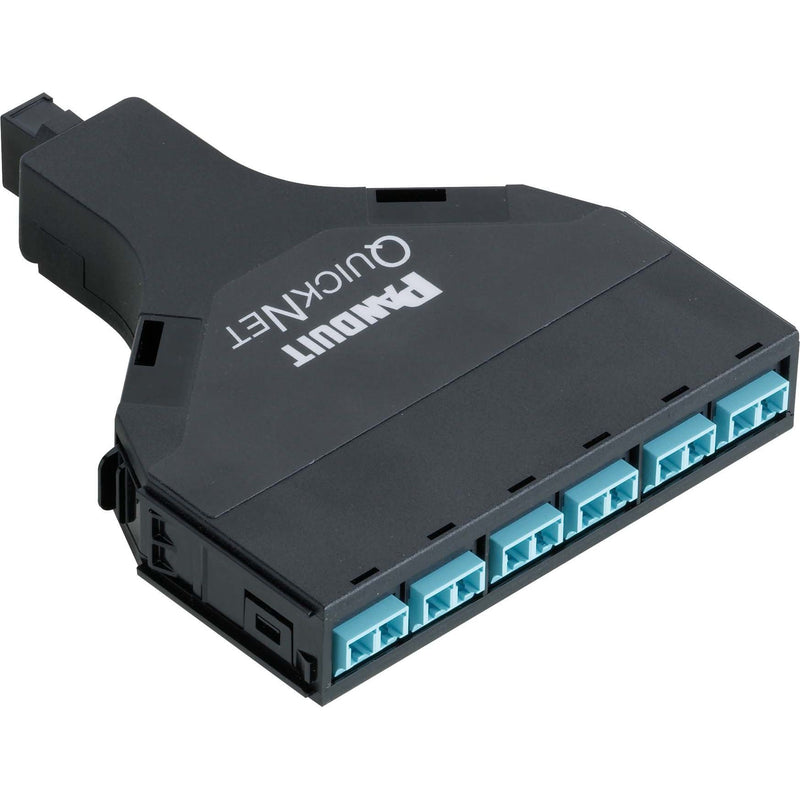

Panduit - Patchpanel LWL Glasfaser-Kassetteneinsch. FQZO-12-10AS OM4 MPO a. LC-Duplex

QuickNet SFQ Series MTP Fiber Optic Cassettes are compatible with QuickNet Patch Panels for up to 96 fiber connections in 1RU with QAPP48HDBL, Quicknet 48-port Angled Patch Panel, Connect together with high-density female MTP cable assemblies as interconnecting network segments for deploying a remote or data center location in minutes, Significantly reduce installation time and labor by eliminating field connector terminations, Factory terminated, assembled and 100 percent tested, Insertion loss data provided on every fiber cassette, Return loss data provided on all singlemode fiber cassettes, Lifetime traceability of test data to a Quality Control number on each fiber cassette, 10Gig OM3 50/125 Fiber Cassettes are tested per IEEE 802.3ae 10 GbE to support network transmission speeds up to 10 Gb/s for link lengths up to 300 meters at 850nm, backward compatible with all 50/125 micron, OM2, MPO or MTP system requirements.

Technische Details
Geeignet für Anzahl Kupplungen/Adapter	6
Mit Anzahl Kupplungen/Adapter	6
Mit Frontplatte	ja
Mit Gehäuse	ja
Mit Pigtails	nein
Faserart	Multimode 62,5/125
Faserklasse	OM4
APC-Ausführung	nein
Steckverbindertyp außen	LC-Duplex
Steckverbindertyp innen	MT/MPO
Farbe	schwarz
RAL-Nummer	9005
Montageart	sonstige
Höhe	21 mm
Breite	106 mm
Tiefe	128 mm

Lieferumfang:
1 x Panduit - Patchpanel LWL Glasfaser-Kassetteneinsch. FQZO-12-10AS OM4 MPO a. LC-Duplex

Keine Downloads vorhanden.
