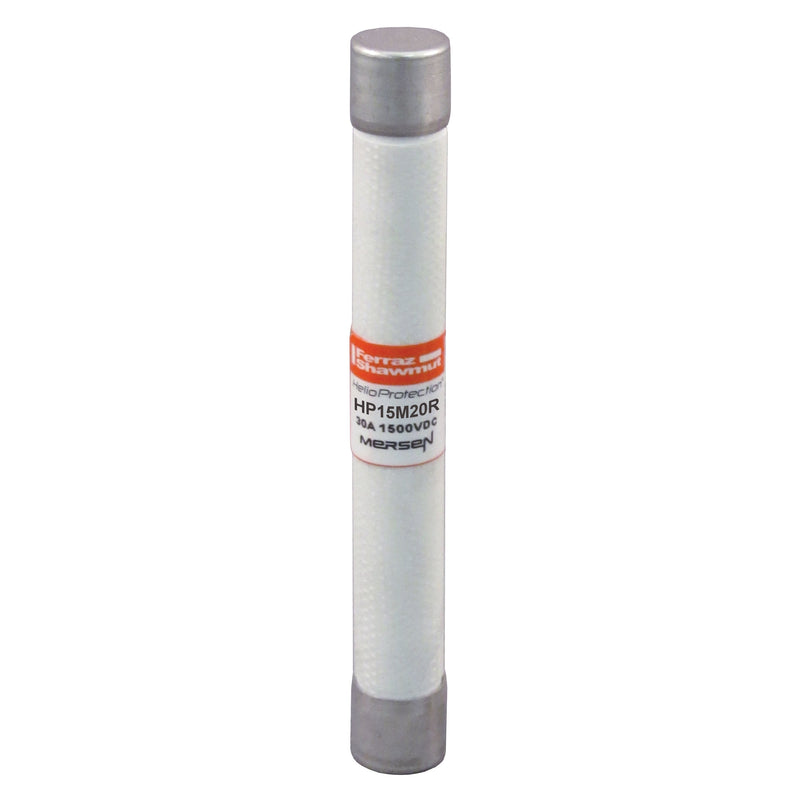

Mersen - Zylindrische Sicherung Sicherungseinsatz HP15M20R 20A − 5 Stück

Mersen s GEN2 of the HP15M photovoltaic (PV) fuse series is designed specifically to meet the severe temperature and current cycling of a PV system. Subjected to stringent cycle testing, the GEN2 provides enhanced reliability. These 1500VDC rated fuses are designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, which allows for safe circuit interruption under typical low fault current conditions. In addition to the standard ferrule terminal, parts are also available with Crimp Cap terminals for in-line fuse applications. The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring. Protect your off-grid or grid tied PV system from unexpected line faults using Mersen s HelioProtection® fuse line.

Technische Details
Ausführung	GMG
Größe	10x85
Spannungsart	DC
Bemessungsstrom	20 A
Bemessungsspannung	1500 V
Betriebsklasse	gPV (Ganzbereichs-Photovoltaikschutz)
Betriebsfrequenz	50..60 Hz
Auslösecharakteristik	PV
Abschaltleistung	50 kA
Leistungsverlust bei Bemessungsstrom	4,28 W

Lieferumfang:
5 x Mersen - Zylindrische Sicherung Sicherungseinsatz HP15M20R 20A
