Idea Optical - LWL-Kabel FTTH-Kab I/A-(CT)Q(ZN)H2Y N9730B-Dca 4E9 G657A2 6,1mm − 4000 Meter

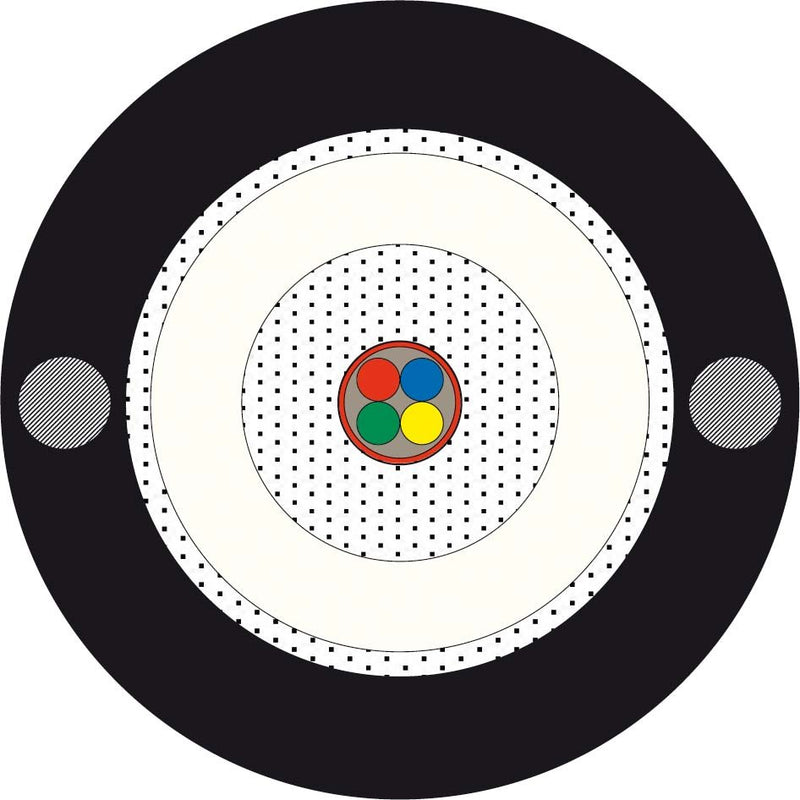

ACOME UNB drop cables have been designed to meet the needs of FTTH access network terminations. The idea behind this product range UNB 1625 (1, 2 and 4 fibers) is to insure the aerial, duct or façade link between the outdoor taping box or flexibility point and the subscriber optical outlet without any splice. To achieve this goal an original double jacket approach was adopted. An HDPE outer sheath protects the cable outdoor, but can be easily removed inside the premise and the LSOH subscriber cable can be laid to the subscriber s optical outlet.

Technische Details
Anzahl der Fasern	4
Ader-Art	Vollader
Faserart	Singlemode 9/125
Kategorie	OS2
Mantelmaterial	sonstige
Spezifizierung Mantelmaterial	Polyethylen (PE)
Mantel-Farbe	schwarz
Kabel längswasserdicht	ja
Brandverhaltensklasse nach EN 13501-6	Dca
Rauchentwicklungsklasse nach EN 13501-6	s2
Abtropfverhaltensklasse nach EN 13501-6	d2
Säureentwicklungsklasse nach EN 13501-6	a2
Außendurchmesser ca.	6,1 mm

Lieferumfang:
1 x LWL-Kabel FTTH-Kab I/A-(CT)Q(ZN)H2Y N9730B-Dca 4E9 G657A2 6,1mm, 4000 Meter
